Peräohjailupotkuri SXE100-24V eVision

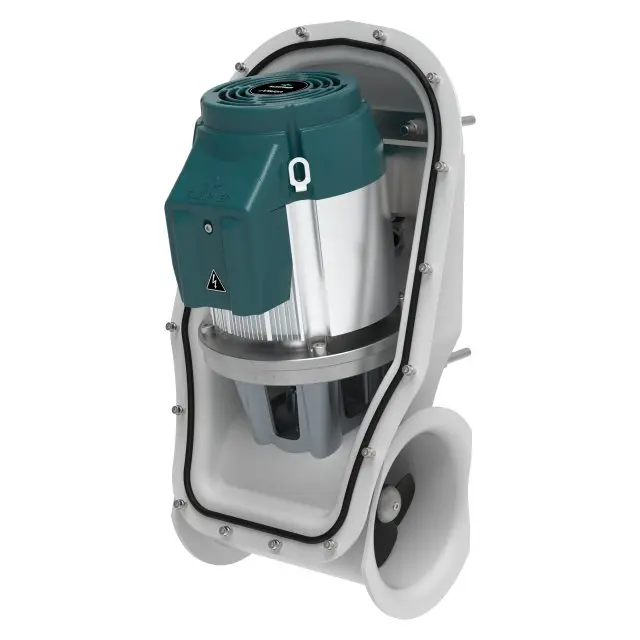

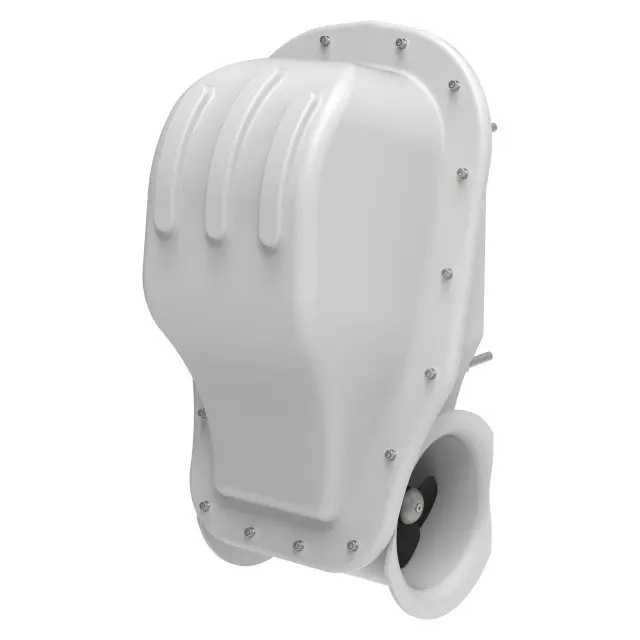

The SXE100 is an externally mounted stern thruster for boats up to 55 feet with twin stern drives. Based on the proven SX100 platform, this version is equipped with Sleipner's eVision technology for efficient performance, intelligent control and quiet, brushless operation.

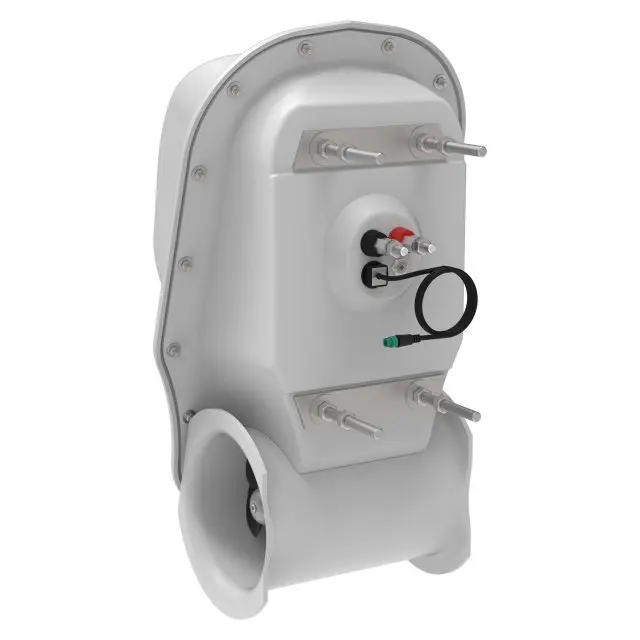

Delivering 100-116 kg of thrust, the thruster uses specially designed cowls to redirect water past the stern drives for optimal maneuverability. Its sealed, waterproof housing is installed on the transom, to tunnel needed, and only requires a small hole for the power and control cables.
Hightlights
- External mounting – no tunnel required
- Quiet, energy-efficient brushless motor
- Optimized for twin stern drive installations
- Maintenance-free, sealed design
- Easy Plug & Play installation
The system comes fully assembled and wired for easy installation, and is compatible with proportional control systems as well as wireless remotes for flexible operation on board. See the 'compatible products' tab for more information.
Optional cowls can be mounted on the tunnel openings to direct water flow away from stern drives or other stern-mounted obstacles.
| Main power | Value |
| Power supply | 24V DC |
| Nominal voltage | 21V DC |
| Nominal current consumption A | 290A |
| Power output at nominal voltage | 5.6kW / 7.51hp |
| Recommended fuse A | ANL 250 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 290 |
| Minimum battery CCA (SAE) | 551 |
| Minimum battery CCA (EN) | 493 |
| Protection standards | Value |
| Ignition protection rating | ISO 8846 |
| Alarms | Value |
| Alarm notification | Via the product's control device |
| Performance and features | Value |
| Motor cycle duty | Runtime @ 100% thrust: Continuous @ 22degC ambient, typically limited by battery capacity |
| Thrust ratings | Value |
| Thrust at 24V | 100kg / 220.46lbs |
| Thrust at 21V | 100kg / 220.46lbs |
| Features | Value |
| Q-Propeller | Yes |
| Twin Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| IP - Ignition Protection | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Ceramic Seals | Yes |
| Industry leading efficiency | Yes |
| Plug and play signal cables | Yes |
