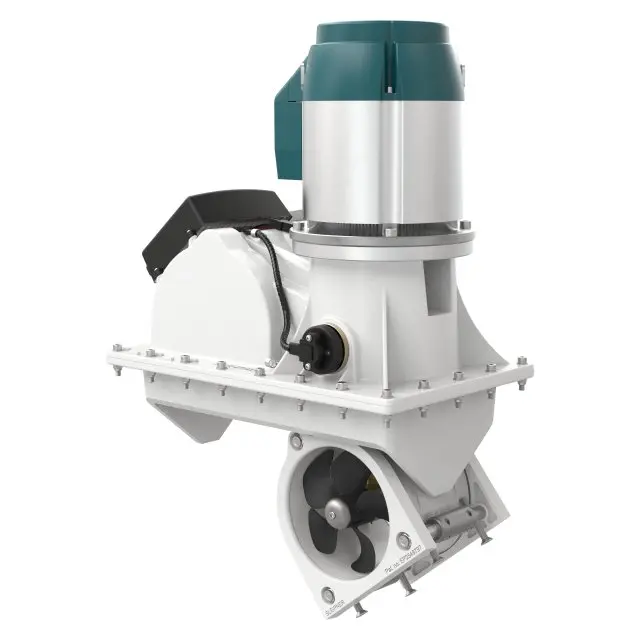

The ERV100 is a highly efficient, compact, lightweight retract thruster suitable for boats between 35-55 feet. The integrated inverter for variable speed control makes for a quick and easy installation.
ERV100 has the new 6-phase PMSM synchronous motor made explicitly for marine thruster use, delivering performance and runtime never seen before in a DC thruster. The unit is designed for vertical installation, making it perfect for boats with available height space.
- Up to 50% lighter
- Compact design
- Industry-leading runtime
- Active air cooling
| Main power | Value |
| Power supply | 48V DC |
| Nominal voltage | 42V DC |
| Nominal current consumption A | 150A |
| Power output at nominal voltage | 6.3kW / 8.45hp |
| Recommended fuse A | ANL 125 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 150 |
| Minimum battery CCA (SAE) | 285 |
| Minimum battery CCA (EN) | 255 |
| Performance and features | Value |
| Motor cycle duty | Runtime @ 100% thrust: Continuous @ 22degC ambient, typically limited by battery capacity |
| Thrust ratings | Value |
| Thrust at 48V | 100kg / 220.46lbs |
| Thrust at 42V | 100kg / 220.46lbs |
| Features | Value |
| Q-Propeller | Yes |
| Twin Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Splash-Proof | Yes |
| Flexible Coupling | Yes |
| Ceramic Seals | Yes |
