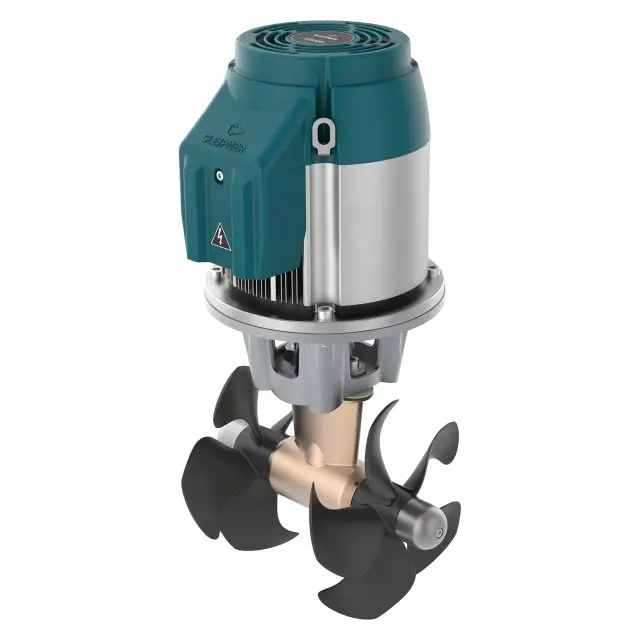

The E150 is a highly efficient, compact, lightweight thruster suitable for boats between 44-64 feet. The integrated inverter for variable speed control makes for a quick and easy installation.
E150 has the new 6-phase PMSM synchronous motor made explicitly for marine thruster use, delivering performance and runtime never seen before in a DC thruster.
- Up to 50% lighter
- Compact design
- Industry-leading runtime
- Active air cooling
| Main power | Value |
| Power supply | 24V DC |
| Nominal voltage | 21V DC |
| Nominal current consumption A | 430A |
| Power output at nominal voltage | 8.1kW / 10.86hp |
| Recommended fuse A | ANL 400 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 430 |
| Minimum battery CCA (SAE) | 817 |
| Minimum battery CCA (EN) | 731 |
| Protection standards | Value |
| Ignition protection rating | ISO 8846 |
| Performance and features | Value |
| Motor cycle duty | Runtime @ 100% thrust: Continuous @ 22degC ambient, typically limited by battery capacity |
| Thrust ratings | Value |
| Thrust at 24V | 150kg / 330.69lbs |
| Thrust at 21V | 150kg / 330.69lbs |
| Features | Value |
| Q-Propeller | Yes |
| Twin Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| IP - Ignition Protection | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Ceramic Seals | Yes |
| Flexible Installation | Yes |
| Intelligent Power Control Plus | Yes |
