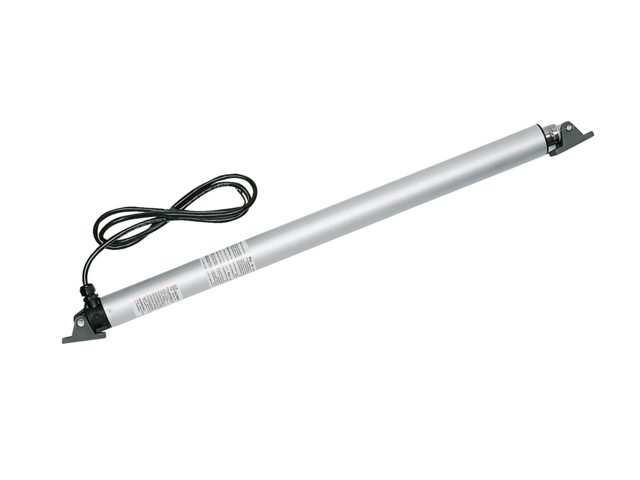

Luukunnostin AV6024, 600mm, 24V, 1200N

The AV serie is a strong electromechanical hatch lifter that can be installed both single and twin cylinder. The AV serie is capable of handling higher loads on board of pleasure boats such as engine hatches, peak tanks, hatch beams etc.

• Single of twin installation

• Maximum load:

- single 1200N (120kg-265lbs)

- twin 2400N (240kg-529lbs)

• Max. oscillation range 125°

• Ø 48mm

• Supplied with mounting hardware

• Supplied with circuit breaker to stop accidental overloading

• Electronic stop at closed or full open position

• Stainless steel ram arm

• Speed:

- 25mm/sec no load

- 17mm/sec max. load

• Current absorption:

- 12V:10A

- 24V: 5A

• Control box (relais) and switch can be ordered separately

• 12V models are ignition protected according to ISO8846, UL1500
