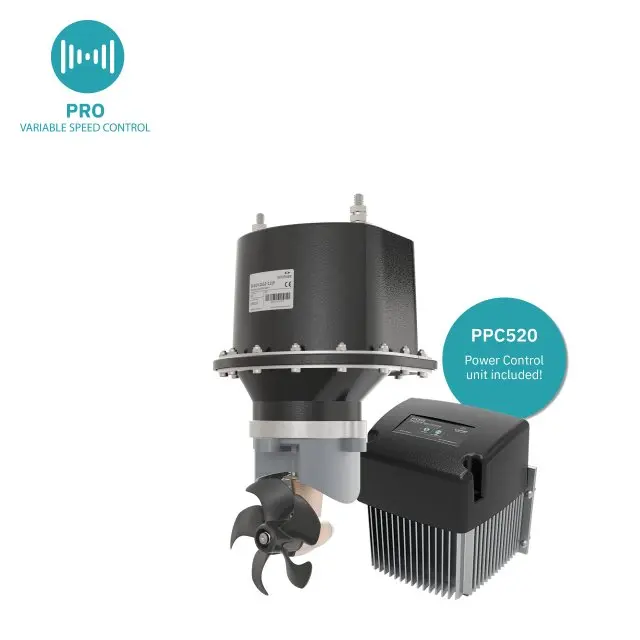

SEP40 PRO IP Tunnel bow/stern thruster, 12V,
We received your request for quote. We will get back to you as soon as possible.
Failure in product quote request.
SEP40 PRO™ Ignition Protection with variable speed control is suitable for boats between 26-34 feet. With its 40-48 kg thrust, you get a safe and reliable thruster installation in boats with gasoline engines. Can be mounted in the bow and stern.
The thruster offers great installation flexibility as it can be mounted at any angle on the tunnel. Additionally, the electric motor can be rotated 90 degrees on the motor bracket.
It is galvanically isolated and features Sleipner's patented IPC technology for intelligent power control and safety. See more of the product features below.
| Main power | Value |
| Power supply | 12V DC |
| Nominal voltage | 10.5V DC |
| Nominal current consumption A | 315A |
| Power output at nominal voltage | 2.2kW / 2.95hp |
| Recommended fuse A | ANL 250 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 300 |
| Minimum battery CCA (SAE) | 570 |
| Minimum battery CCA (EN) | 520 |
| Protection standards | Value |
| Ignition protection rating | ISO 8846 |
| Performance and features | Value |
| Motor cycle duty | 2 - 3 min. Duty cycle at 20°c (Ambient temperature) |
| Thrust ratings | Value |
| Thrust at 12V | 48kg / 105.82lbs |
| Thrust at 10.5V | 40kg / 88.18lbs |
| Features | Value |
| Intelligent Power Control | Yes |
| Q-Propeller | Yes |
| Single Propeller | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| IP - Ignition Protection | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Splash-Proof | Yes |
| Ceramic Seals | Yes |
| Flexible Installation | Yes |
