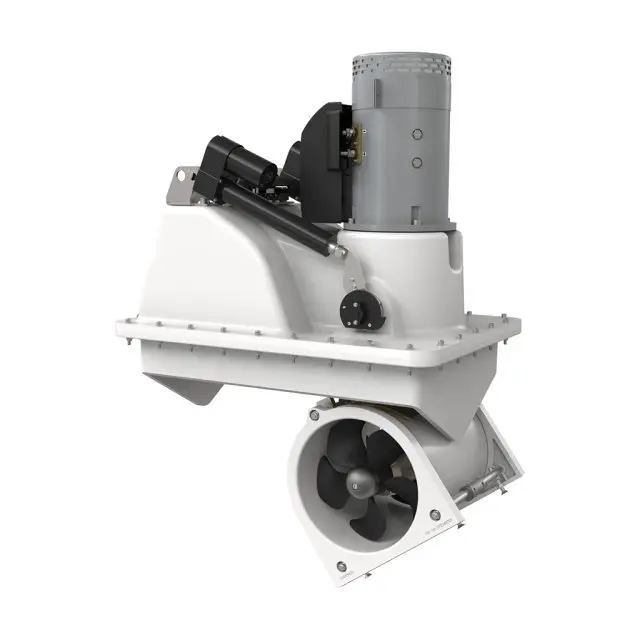

SRV300 is a sturdy retract thruster with 300-340 kg thrust, suitable for boats between 72-100 feet.
The thruster is mounted on a flange and has a fast deployment and retraction time. The unit is designed for vertical installation, making it perfect for boats with available height space.
A remote control is a popular accessory. See some of the important product and safety features below.
| Main power | Value |
| Power supply | 48V DC |
| Nominal voltage | 42V DC |
| Nominal current consumption A | 400-450A |
| Power output at nominal voltage | 15kW / 20.12hp |
| Recommended fuse A | ANL 325 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 400 |
| Minimum battery CCA (SAE) | 760 |
| Minimum battery CCA (EN) | 680 |
| Performance and features | Value |
| Motor cycle duty | 2 - 3 min. Duty cycle at 20°c (Ambient temperature) |
| Thrust ratings | Value |
| Thrust at 48V | 340kg / 749.57lbs |
| Thrust at 42V | 300kg / 661.39lbs |
| Features | Value |
| Intelligent Power Control | Yes |
| Q-Propeller | Yes |
| Twin Counter Rotating Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Safe Start-Up / Child safety | Yes |
