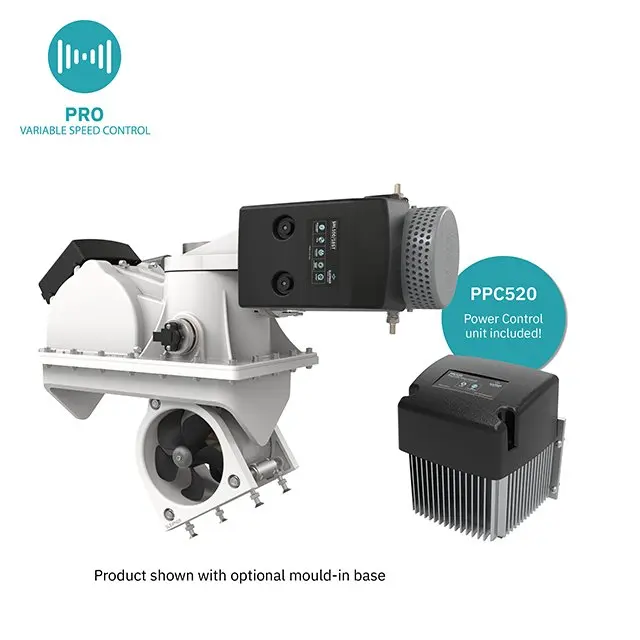

SRLP100 PRO™ with variable speed control is a sturdy retract thruster with 100-116 kg thrust, suitable for boats between 35-55 feet.
The thruster is mounted on a flange and has a fast deployment and retraction time. The unit is compact with bevel gears, making it perfect for boats with limited height space.
A remote control is a popular accessory. See some of the important product and safety features below.
| Main power | Value |
| Power supply | 12V DC |
| Nominal voltage | 10.5V DC |
| Nominal current consumption A | 740A |
| Power output at nominal voltage | 6.3kW / 8.45hp |
| Recommended fuse A | ANL 500 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 750 |
| Minimum battery CCA (SAE) | 1425 |
| Minimum battery CCA (EN) | 1320 |
| Alarms | Value |
| Alarm notification | Via the product's control device |
| Performance and features | Value |
| Motor cycle duty | 2 - 3 min. Duty cycle at 20°c (Ambient temperature) |
| Thrust ratings | Value |
| Thrust at 12V | 116kg / 255.74lbs |
| Thrust at 10.5V | 100kg / 220.46lbs |
| Features | Value |
| Intelligent Power Control | Yes |
| Q-Propeller | Yes |
| Twin Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Ceramic Seals | Yes |
