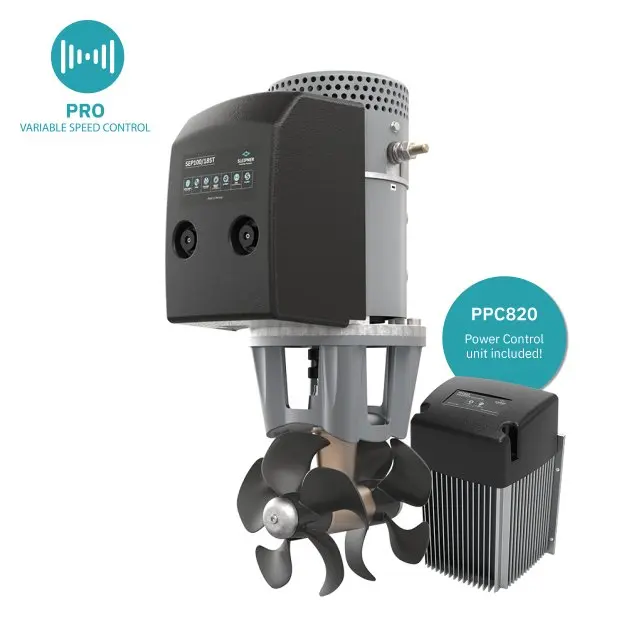

SEP100 PRO Tunnel bow/stern thruster, 24V, Ø1
We received your request for quote. We will get back to you as soon as possible.
Failure in product quote request.
SEP100 PRO™ with variable speed control is the most powerful thruster available in the popular 185mm tunnel diameter, making it compact and efficient with 100-116 kg thrust. Suitable for boats between 35-55 feet.
The thruster offers great installation flexibility as it can be mounted at any angle on the tunnel. Additionally, the electric motor can be rotated 90 degrees on the motor bracket.
It is galvanically isolated and features Sleipner's patented IPC technology for intelligent power control and safety. See more of the product features below.
| Main power | Value |
| Power supply | 24V DC |
| Nominal voltage | 21V DC |
| Nominal current consumption A | 340A |
| Power output at nominal voltage | 6.3kW / 8.45hp |
| Recommended fuse A | ANL 325 |
| Cold Cranking Amps (CCA) | Value |
| Minimum battery CCA (DIN) | 400 |
| Minimum battery CCA (SAE) | 760 |
| Minimum battery CCA (EN) | 680 |
| Performance and features | Value |
| Motor cycle duty | 2 - 3 min. Duty cycle at 20°c (Ambient temperature) |
| Thrust ratings | Value |
| Thrust at 24V | 116kg / 255.74lbs |
| Thrust at 21V | 100kg / 220.46lbs |
| Features | Value |
| Intelligent Power Control | Yes |
| Q-Propeller | Yes |
| Twin Propellers | Yes |
| Sealed Drive Lubrication | Yes |
| Galvanic Separation | Yes |
| PRO - Variable Speed Control | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Ceramic Seals | Yes |
| Flexible Installation | Yes |
No Specifications
